Ch= RA393
DuMont Labs, Allen B., Inc.
- Country
- United States of America (USA)
- Manufacturer / Brand
- DuMont Labs, Allen B., Inc.
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 314979
-
- alternative name: Dumont Television & Radio

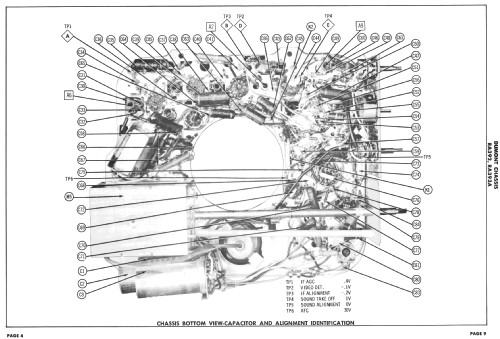

Picture from service manual.

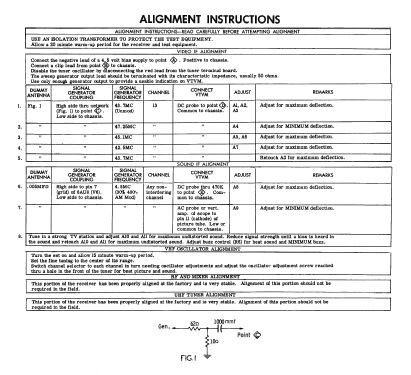

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 5BK7A 2AF4A 5AT8 3CB6 3CB6 6AU8 6AU8 3BN6 5AQ5 3CS6 12B4A 3AL5 6SN7GTB 12CU6 12AX4GTA 1B3GT 14SP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Ch= RA393 - DuMont Labs, Allen B., Inc.
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Dumont Chassis RA393 is a 14" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with VHF- tuner 89014065, UHF- tuner 89014251 and picture tube 14SP4.
