RA-147A

• Country
• United States of America (USA)

• Manufacturer / Brand
• DuMont Labs, Allen B., Inc.

• Year
• 1951 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 358421

• • alternative name: Dumont Television & Radio

• Picture
• Schematics

Previous Next

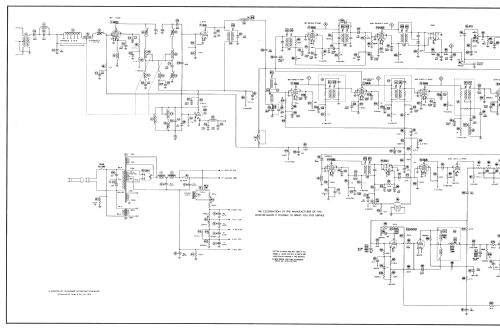

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• 6BC5 6J6 6BA6 6AU6 6BA6 6BC5 6AL5 6AH6 6AU6 6AU6 6T8 6AQ5 6AL7GT 6BA6 6AL5 6AU6 6SN7GT 6SN7GT 6SN7GT 6BQ6GT 6W4GT 1X2 5U4G 17BP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: RA-147A - DuMont Labs, Allen B., Inc.

• Shape
• Console with any shape - in general

• Notes

• Dumont  model RA-147A is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with a VHF tuner 89002941 and picture tube 17BP4A.



• Mentioned in
• Photofact Folder, Howard W. SAMS (Set 183, folder 1, dated 10-52)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 131, folder 5, dated 5-51)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
