RA-162 (Banbury, Flanders, Wickford, Wimbledon, Whitehall II )
DuMont Labs, Allen B., Inc.
- Country
- United States of America (USA)
- Manufacturer / Brand
- DuMont Labs, Allen B., Inc.
- Year
- 1952 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 133723
-
- alternative name: Dumont Television & Radio

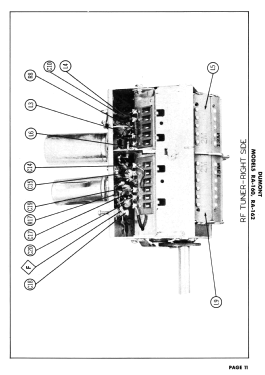

Picture from service manual.
Service Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 26
- Valves / Tubes
- 6BK7 6J6 6CB6 6CB6 6CB6 6CB6 6AL5 6AG7 12AX7 6AU6 6AU6 6AL5 6AT6 6V6GT 12AT7 12AT7 6BL7GT 6SN7GT 6SN7GT 6CD6G 6W4GT 1X2A 1X2A 5U4G 5U4G 21KP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: RA-162 - DuMont Labs, Allen B., Inc.
- Shape
- Console with any shape - in general
- Notes
-
Dumont model RA-162 is a b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner 21009121 and picture tube 21KP4A..
