• Country
• United States of America (USA)

• Manufacturer / Brand
• DuMont Labs, Allen B., Inc.

• Year
• 1953 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 189832

• • alternative name: Dumont Television & Radio

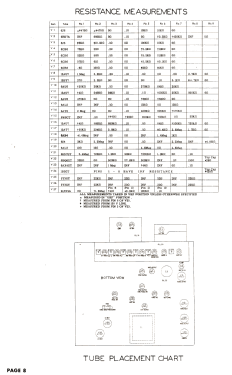

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 26

• Valves / Tubes
• 6BK7A 6J6 6CB6 6CB6 6CB6 6CB6 12AU7 12BY7 6AU6 12AU7 6AU6 6AL5 6AT6 6W6GT 12AU7 12AT7 6AB4 6S4 6AL5 6SN7GT 6BQ6GT 6AX4GT 1B3GT 5Y3GT 5Y3GT 21FP4A

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: RA-166 - DuMont Labs, Allen B., Inc.

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 630 x 950 x 560 mm / 24.8 x 37.4 x 22 inch

• Notes
• VHF only. Wooden console with two doors. Rear phono input.

  Gamme d'onda: solo VHF.
  A forma di armadietto in legno con due ante.
  Sul retro è presente un ingresso Phono.
