Sound Stage 200-B Ch= 120524-B
DuMont Labs, Allen B., Inc.
- Country
- United States of America (USA)
- Manufacturer / Brand
- DuMont Labs, Allen B., Inc.
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 211922
-
- alternative name: Dumont Television & Radio
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

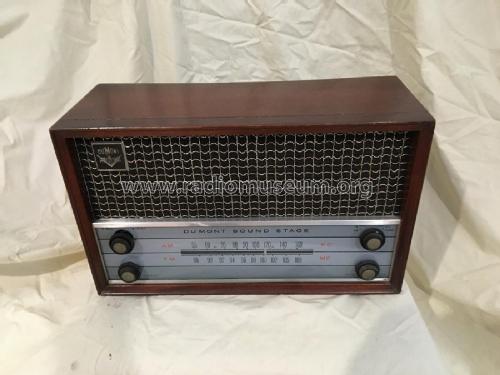

- Model: Sound Stage 200-B Ch= 120524-B - DuMont Labs, Allen B., Inc.
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 16.5 x 10 x 6.5 inch / 419 x 254 x 165 mm
- Notes
- Tube Radio Dumont Model 200 Soundstage.
AM/FM Radio with external Phonograph Input Plug, Speaker: 5" X 7" Woofer and a 3" Tweeter, Bass- and Treble Control.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 606, Folder 3, Nov. 1962)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
