- Country
- Australia
- Manufacturer / Brand
- D.W. Radio Co. Pty. Ltd. (D.W.,Tela-Verta); Sydney, NSW
- Year
- 1948–1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 288364
from Radio Receiver Price List, March, 1950

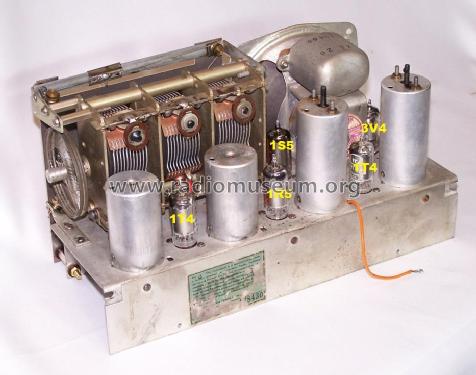

- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1.5 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

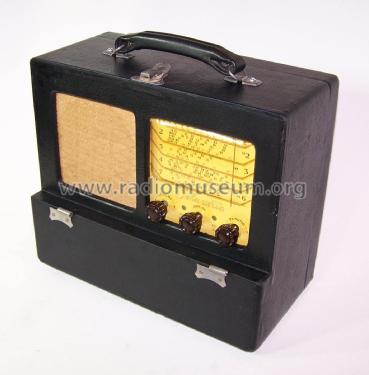

- Model: TV125P - D.W. Radio Co. Pty. Ltd. D.W.,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 12 x 10.5 x 6.25 inch / 305 x 267 x 159 mm
- Notes
-
TELA-VERTA
Tela-Verta Radio Co. Pty. Ltd.MODEL: TV125P
Features: 5 valve broadcast; 5" speaker; 3-position on/off switch incorporates battery economiser; aerial around outside of case; leatherette covered case. (PORTABLES ON PARADE - RADIO ELECTRICAL WEEKLY)
- Net weight (2.2 lb = 1 kg)
- 16 lb 0 oz (16 lb) / 7.264 kg
- Price in first year of sale
- 26.75 AUS £
- Mentioned in
- Radio Electrical WEEKLY (Portables On Parade Supplement, 29/10/1948.)
- Author
- Model page created by Bruce Wilkie. See "Data change" for further contributors.
