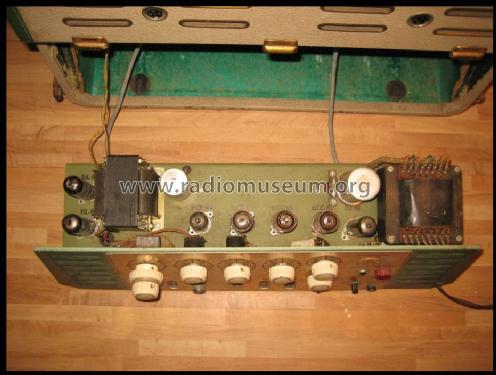

DA15/V ECF82
Dynacord (W. Pinternagel); Straubing
- Country
- Germany
- Manufacturer / Brand
- Dynacord (W. Pinternagel); Straubing
- Year
- 1958/1959
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 22503
- Number of Tubes
- 7
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
- Power out
- 15 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: DA15/V [ECF82] - Dynacord W. Pinternagel;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 485 x 300 x 250 mm / 19.1 x 11.8 x 9.8 inch
- Notes
- Dynacord Mischverstärker DA15/V.
Organisch eingebauter Röhren-Vibrator mit veränderbarer Frequenz und Amplitude. 4 Eingänge, Ausgang: 6 Ohm (9,5 V); Frequenzbereich: 20-20000 Hz ± 1 dB.
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Price in first year of sale
- 540.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1958/59 / Radiokatalog Band 2, Ernst Erb
