• Country
• Germany

• Manufacturer / Brand
• Dynacord (W. Pinternagel); Straubing

• Year
• 1972–1979 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 78201

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• BC109 BC178 BC109 BC109 BC109 BC178 BC109 BC109 BC109 BC109 BC109 BC178 BC107 Diode_Zener Diode_Zener B30C150

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110, 130, 220, 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org

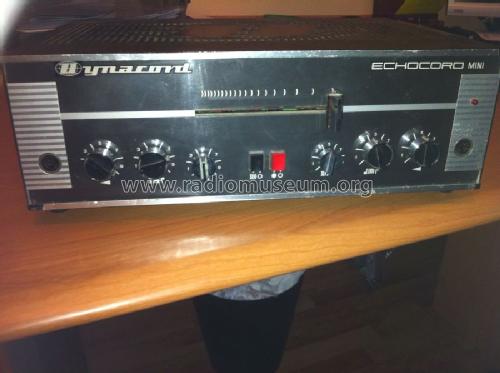

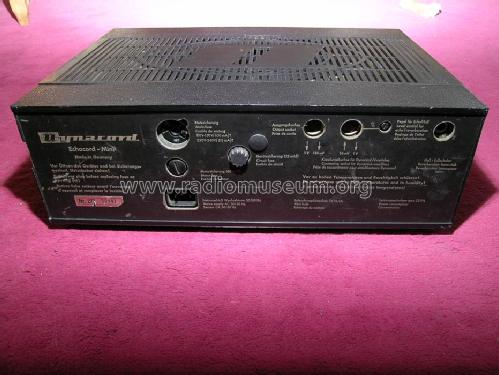

• Model: Echocord Mini - Dynacord W. Pinternagel;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 385 x 140 x 265 mm / 15.2 x 5.5 x 10.4 inch

• Notes
• Echogerät bzw. Nachhallgerät. Echoverzögerung 60 msek. - 360 sek., Nachhalldauer 5 sek.

• Net weight (2.2 lb = 1 kg)
• 6.7 kg / 14 lb 12.1 oz (14.758 lb)

• Price in first year of sale
• 1,440.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original-techn. papers. (Schaltbild von 19.10.1972 und 2.10.1973)

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
