• Country
• Germany

• Manufacturer / Brand
• Dynacord (W. Pinternagel); Straubing

• Year
• 1968–1971

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 79702

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 27

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Other Recorder/Player

• Power type and voltage
• Alternating Current supply (AC) / 110, 130, 220, 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

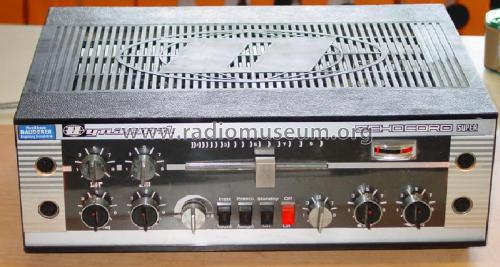

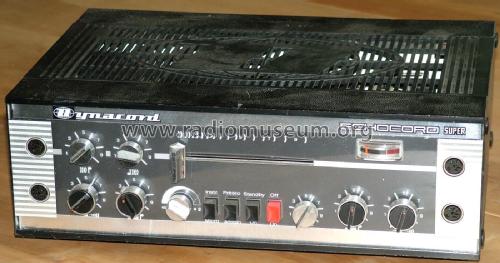

• Model: Echocord Super 75 - Dynacord W. Pinternagel;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 386 x 139 x 268 mm / 15.2 x 5.5 x 10.6 inch

• Notes

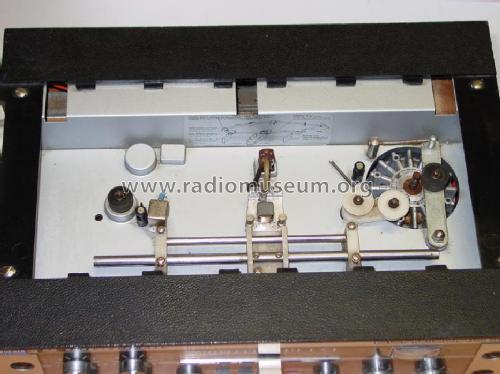

• Effekt-Echogerät mit Endlosband. Bandgeschwindigkeit 22 und 44 cm/sec., Echoanzahl >20, Nachhalldauer: Echo ca. 8 sec, Federhall ca. 2 sec.

• Net weight (2.2 lb = 1 kg)
• 7.6 kg / 16 lb 11.8 oz (16.74 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
