• Country
• Germany

• Manufacturer / Brand
• Dynacord (W. Pinternagel); Straubing

• Year
• 1969

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 89618

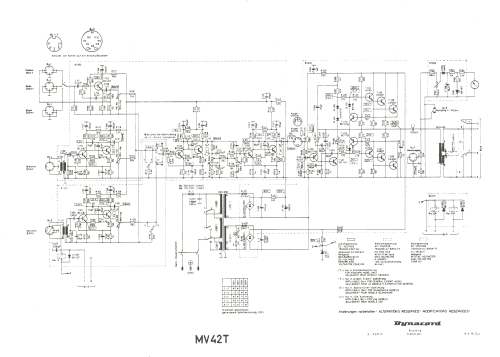

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 19

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 55 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: ELA-Mischverstärker MV42T - Dynacord W. Pinternagel;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 386 x 140 x 268 mm / 15.2 x 5.5 x 10.6 inch

• Notes
• Dynacord ELA-Mischverstärker MV42T.
  4 Eingänge; Ausgänge: 1× 100 V, 1× 4-16 Ohm, 1× Output 1 V.

• Net weight (2.2 lb = 1 kg)
• 9.3 kg / 20 lb 7.8 oz (20.485 lb)

• Price in first year of sale
• 886.00 DM

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
