• Country
• Germany

• Manufacturer / Brand
• Dynacord (W. Pinternagel); Straubing

• Year
• 1968–1974

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 82806

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes

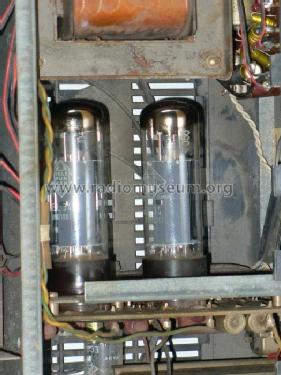

• ECC81 EL34 EL34

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Various materials

• from Radiomuseum.org
• Model: Eminent I-T - Dynacord W. Pinternagel;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 385 x 140 x 265 mm / 15.2 x 5.5 x 10.4 inch

• Notes
• Ausgangsleistung 40 W RMS, 55 W Musik; Flutlichtbedienungsplatte.

• Net weight (2.2 lb = 1 kg)
• 12.3 kg / 27 lb 1.5 oz (27.093 lb)

• Source of data
• -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
