• Country
• Germany

• Manufacturer / Brand
• Dynacord (W. Pinternagel); Straubing

• Year
• 1963 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 128524

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC83 ECC83 ECC83 ECF80 EZ81 EL84 EL84

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 18 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

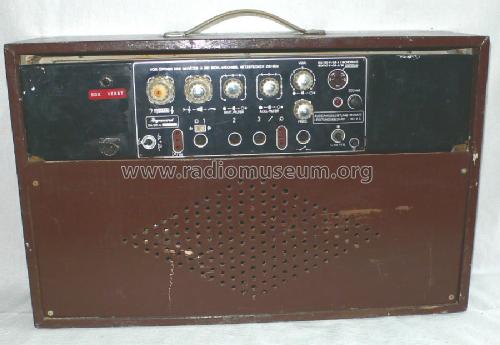

• Model: Koffer-Mischverstärker DA20 - Dynacord W. Pinternagel;

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 630 x 400 x 170 mm / 24.8 x 15.7 x 6.7 inch

• Notes
• DA 20 Koffer-Mischverstärker.
  5 Eingänge: Mikrofon, Gitarre, Akkordeon, Tonabnehmer, Echogerät.
  3 Mischregler.

• Net weight (2.2 lb = 1 kg)
• 12.2 kg / 26 lb 14 oz (26.872 lb)

• Price in first year of sale
• 449.00 DM

• Source of data
• - - Data from my own collection

• Literature/Schematics (1)
• Mütron-Katalog 1963

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
