• Country
• Germany

• Manufacturer / Brand
• Dynacord (W. Pinternagel); Straubing

• Year
• 1955–1960

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 20094

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC83 EL84 AZ41

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 6 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

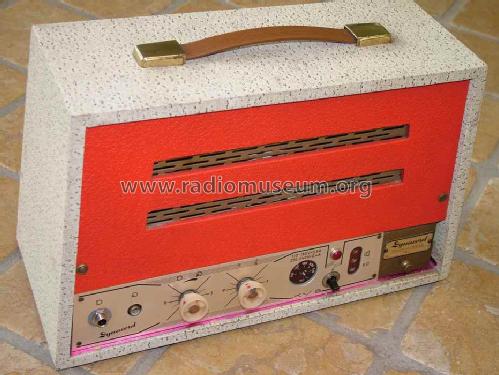

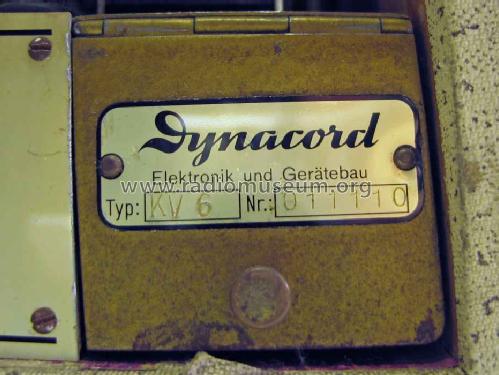

• Model: KV6 - Dynacord W. Pinternagel;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 230 x 120 x 160 mm / 9.1 x 4.7 x 6.3 inch

• Notes
• Vollverstärker; Frequenzbereich 50-15000 Hz; 2 Eingänge.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Price in first year of sale
• 238.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1955/56 / Radiokatalog Band 2, Ernst Erb
