• Country
• Germany

• Manufacturer / Brand
• Dynacord (W. Pinternagel); Straubing

• Year
• 1956–1959

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 21010

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC83 EL156 EL156 AX50 EM71 AX50 AZ41

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 100 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

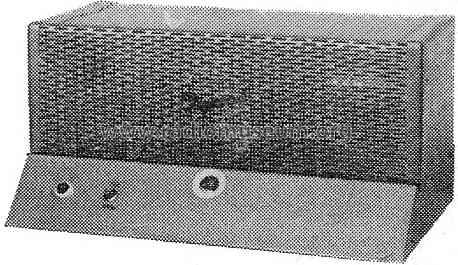

• Model: LE100 [EM71] - Dynacord W. Pinternagel;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 450 x 220 x 275 mm / 17.7 x 8.7 x 10.8 inch

• Notes
• Dynacord Endverstärker LE100.
  Frequenzbereich 50···18000 Hz ± 1 dB; 6 Eingänge, 4 Ausgänge.

• Net weight (2.2 lb = 1 kg)
• 18 kg / 39 lb 10.4 oz (39.648 lb)

• Price in first year of sale
• 725.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57 / Radiokatalog Band 2, Ernst Erb
