Mischverstärker 45 MV45
Dynacord (W. Pinternagel); Straubing
- Country
- Germany
- Manufacturer / Brand
- Dynacord (W. Pinternagel); Straubing
- Year
- 1961/1962
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 161613
Q: Dynacord HiFi-Archiv '61

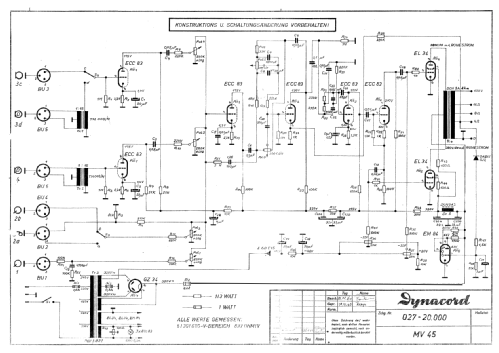

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Number of Transistors
- Semiconductors
- E250C50
- Main principle
- Audio-Amplification; 4 AF stage(s); none
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 45 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Mischverstärker 45 MV45 - Dynacord W. Pinternagel;
- Dimensions (WHD)
- 375 x 115 x 277 mm / 14.8 x 4.5 x 10.9 inch
- Net weight (2.2 lb = 1 kg)
- 12.3 kg / 27 lb 1.5 oz (27.093 lb)
- Mentioned in
- - - Manufacturers Literature (Geräte-Beschreibung und Technische Daten)
- Author
- Model page created by Tobias Münzing. See "Data change" for further contributors.
