• Country
• United States of America (USA)

• Manufacturer / Brand
• Dynamic Electronics New York. Inc.; (NY)

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 154291

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6U8 12AT7 6BE6 6BA6 6AU6 6AU6 6AL5 12AX7 12AX7 EL84 EL84 EZ81

• Main principle
• Superhet, double/triple conversion; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: AF250PA - Dynamic Electronics New York.

• Shape
• Tablemodel, low profile (big size).

• Notes
• The Dynamic Electronic Model AF250PA is an AC Operated 12 Tube FM-AM Receiver.

• Literature/Schematics (1)

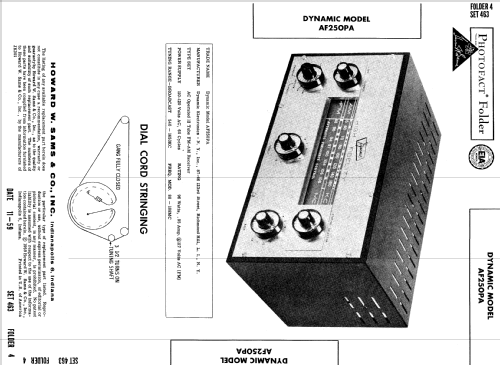

• Photofact Folder, Howard W. SAMS (Date 11-59, Set 463, Folder 4)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.

• Other Models

• Here you find 21 models, 11 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Dynamic Electronics New York. Inc.; (NY)
