• Country
• United States of America (USA)

• Manufacturer / Brand
• Dynamic Electronics New York. Inc.; (NY)

• Year
• 1959 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 146368

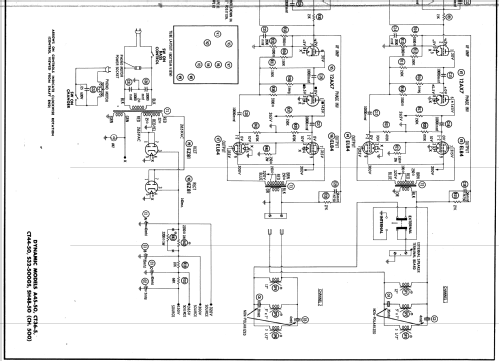

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 12AU7A 12AX7 12AX7 EL84 EL84 EL84 EL84 EZ81 EZ81

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 6 Loudspeakers

• from Radiomuseum.org
• Model: CT36-5 Ch= 500 - Dynamic Electronics New York.

• Notes
• AC operated stereo amplifier with 4 speed automatic record changer. Sams photofact set 488 folder 9 date 6-60 features the Dynamic models A45-50, CT36-5, CT44-50, S32-500GS and SH48-50 as the same schematic.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 488 folder 9 date 6-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
