• Country
• United States of America (USA)

• Manufacturer / Brand
• B&K (Precision), Dynascan Corp., Cobra Electronics; Chicago, IL and Yorba Linda, CA

• Year
• 1961

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 210250

• • alternative name: B&K Manufacturing Company

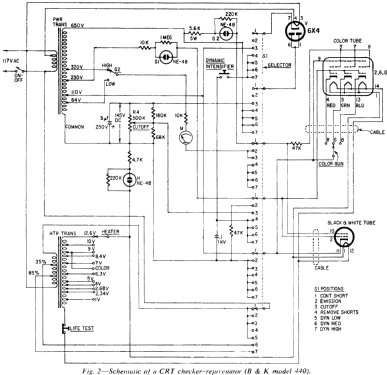

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 6X4

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material

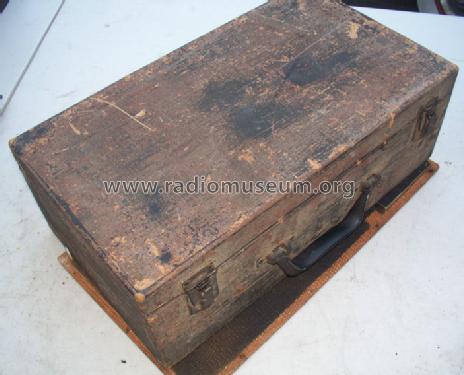

• Wooden case

• from Radiomuseum.org
• Model: B&K CRT 440 - B&K Precision, Dynascan Corp.,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 14 x 5 x 8 inch / 356 x 127 x 203 mm

• Notes
• Cathode Rejuvenator Tester for color CRTs.

• Net weight (2.2 lb = 1 kg)
• 10 lb (10 lb 0 oz) / 4.540 kg

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
