- Country
- United States of America (USA)
- Manufacturer / Brand
- B&K (Precision), Dynascan Corp., Cobra Electronics; Chicago, IL and Yorba Linda, CA
- Year
- 1957
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 135555
-
- alternative name: B&K Manufacturing Company
From Jim McDermaid collection

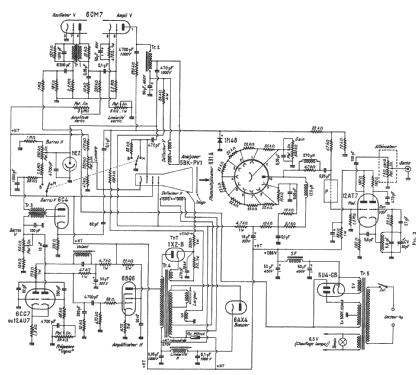

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Material
- Metal case
- from Radiomuseum.org
- Model: Dyna-Scan 1000 - B&K Precision, Dynascan Corp.,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 250 x 290 x 440 mm / 9.8 x 11.4 x 17.3 inch
- Notes
-

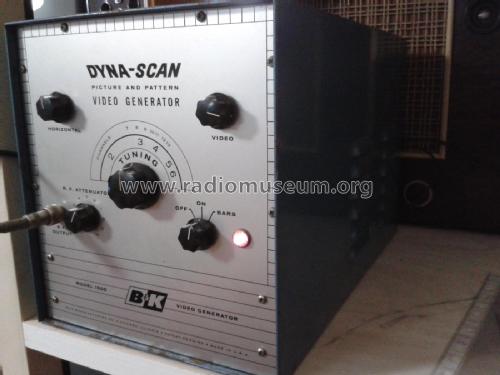

Dyna-Scan Picture and Pattern Video Generator, Model 1000. Flying spot scanner producing a composite video and sync signal. Reproduces custom test patterns with acetate slides.
Similiar to model 1050 but without Color nor Audio Scan. Can be upgraded with Model C15 Color-Scan ($19.95) and Model S16 Audio-Scan ($29.95).
- Price in first year of sale
- 199.95 $
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Raynal Aufils. See "Data change" for further contributors.
