Hambledon Suite HFC62

Dynatron Radio Ltd., Maidenhead, Berkshire

Data
Forum
Pictures
Collections

  • Year
  • 1974
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 278424

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220; 240 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 30 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Hambledon Suite HFC62 - Dynatron Radio Ltd.,
  • Shape
  • Console, Highboy (legs > 50 %).
  • Notes

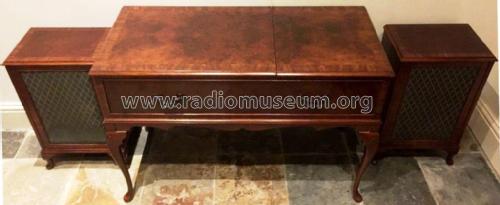

  • Radiogram with the Dynatron SRX26  chassis and a Goldring Lenco GL72 manual turntable housed in a Queen Anne style burr walnut cabinet, with two matching freestanding two way LS2628 loudspeakers.

    Note:
    The uploaded 1974 Dynatron advertisement refers to 4 wavebands, but the built-in Dynatron SRX26 is only equipped with 3 wavebands.

  • Mentioned in
  • - - Manufacturers Literature
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
