HFC 22 Ch=Transpower SRX25 Series Chassis

Dynatron Radio Ltd., Maidenhead, Berkshire

Data
Forum
Pictures
Collections

  • Year
  • 1970 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 348242

 Technical Specifications

  • Number of Transistors
  • 28
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 50Hz, 220-250 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: HFC 22 Ch=Transpower SRX25 Series Chassis - Dynatron Radio Ltd.,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 542 x 210 x 412 mm / 21.3 x 8.3 x 16.2 inch
  • Notes

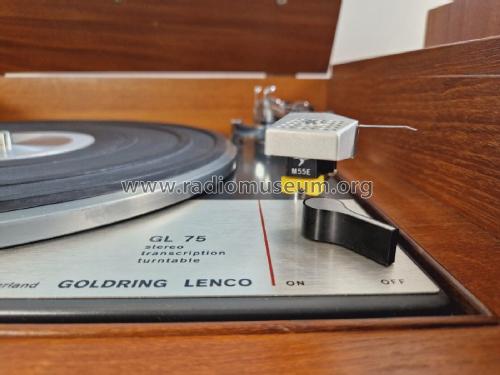

  • Radiogram with a Dynatron Transpower SRX25 chassis and a Goldring Lenco GL 75 transcripting record playing deck fitted with Shure M55E magnetic cartridge.

    Tuner range:-

    • MW 1620-525 kHz
    • LW 270-150kHz
    • VHF/FM 87.5-108 MHz



  • Author
  • Model page created by Clive Forder. See "Data change" for further contributors.
