Rally TP37
Dynatron Radio Ltd., Maidenhead, Berkshire
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Dynatron Radio Ltd., Maidenhead, Berkshire
- Year
- 1966 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 103506

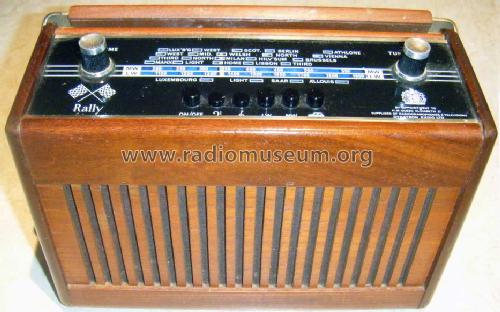

By courtesy of guest Leigh Davies, UK.

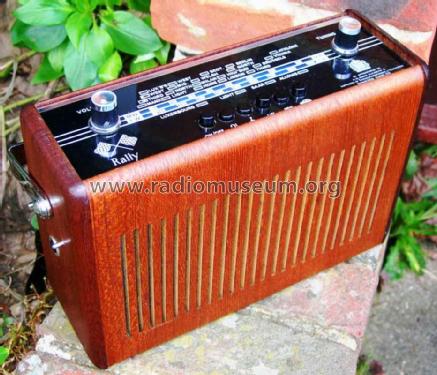

By courtesy of guest Leigh Davies, UK.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 4 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / PP9: 2 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 1 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Rally TP37 - Dynatron Radio Ltd.,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 10.5 x 8 x 3.5 inch / 267 x 203 x 89 mm
- Notes
-
A battery portable 8 transistor radio housed in a teak wooden cabinet, covering the MW and LW bands. Sockets for earphone and car aerial. The 'car' button switches in separate aerial coils used in conjunction with a car aerial Elliptical loudspeaker 6 x 4 inches. Transistors 1, 2 and 3 above are in a Mullard type LP1156 Mixer/IF module .
The same chassis is used in the Dynatron TP36 Rally model which is housed in a black vinyl covered wooden case.
- Price in first year of sale
- 20.00 GBP
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1798 dated 7 April 1967)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
