• Country
• Germany

• Manufacturer / Brand
• Dyras; Nürnberg

• Year
• 1983 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 233885

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 75ARB31

• Number of Transistors
• 17

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

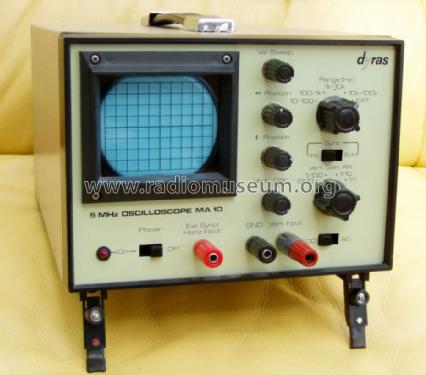

• Model: Oszilloscope MA10 - Dyras; Nürnberg

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 202 x 160 x 305 mm / 8 x 6.3 x 12 inch

• Notes

• Kleines Labor Oszilloskop DC-5 MHz und Kippfrequenzen 10Hz - 100kHz.

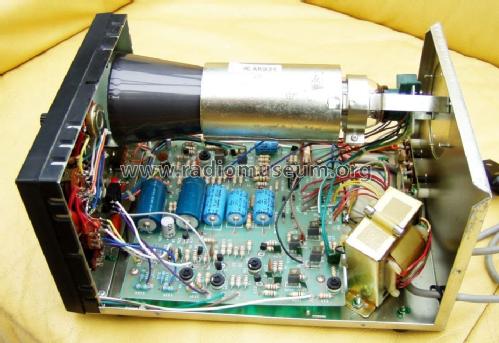

  CRT: Toshiba Typ 75ARB31; Heizung 6.3V/03A; Schirm_Durchmesser 76mm

• Net weight (2.2 lb = 1 kg)
• 3.8 kg / 8 lb 5.9 oz (8.37 lb)

• Price in first year of sale
• 256.00 DM

• Author
• Model page created by Felix Schaffhauser. See "Data change" for further contributors.
