• Country
• Germany

• Manufacturer / Brand
• Dyras; Nürnberg

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 254215

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Various materials

• from Radiomuseum.org

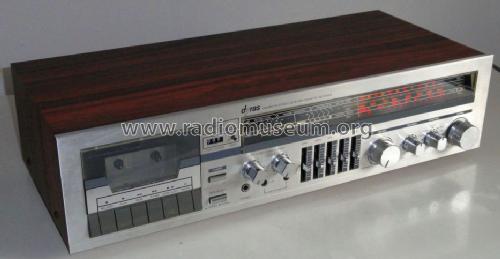

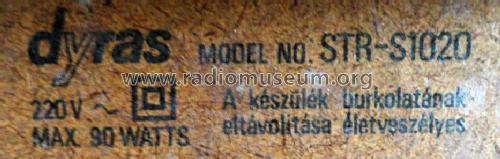

• Model: SW/MW/FM Stereo Receiver-Cassette Recorder STR-S1020 - Dyras; Nürnberg

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 581 x 251 x 150 mm / 22.9 x 9.9 x 5.9 inch

• Notes

• Gerät benötigt ext LS min 8 Ohm.

  KW 3,2-12 MHz   UKW(OIRT) 63,5 - 74 MHz.

  5 fach Klangregler,

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Author
• Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
