Transistor-Empfänger
EAB, Elektro-Apparate-Bau Kurt Breitfeld, Berlin
- Country
- Germany
- Manufacturer / Brand
- EAB, Elektro-Apparate-Bau Kurt Breitfeld, Berlin
- Year
- 1958 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 281430
Ebay-Verk.: radioduke, ArtNr.: 222089602100
Ebay-Verk.: radioduke, ArtNr.: 222089602100
Ebay-Verk.: radioduke, ArtNr.: 222089602100
- Number of Transistors
- 1
- Semiconductors
- GFT21
- Main principle
- Crystal or Solid State Detector with Amplifer; 1 AF stage(s); Crystal-detection 1 circuit (no tubes)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 3 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Transistor-Empfänger - EAB, Elektro-Apparate-Bau Kurt
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-

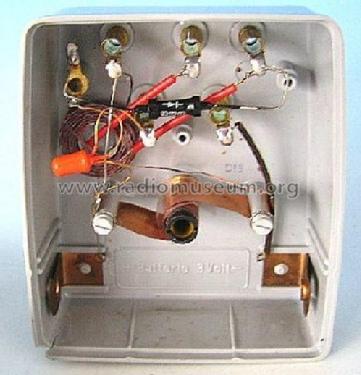

Wickelkondensator zur Abstimmung; TeKaDe Ge-Diode. Buchsen für A1, A2, E, 2x Telefon (Hörer).
In "Funkgeschichte" 215 auch "Tre" genannt
- Literature/Schematics (1)
- Funkgeschichte der GFGF (215, Bösterling/Rademacher, Spielzeug oder richtige Radios? S.116-119)
- Author
- Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.
