• Country
• Great Britain (UK)

• Manufacturer / Brand
• Chakophone (Brand) Eagle Engineering Co. Ltd.; Warwick

• Year
• 1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 203172

• • alternative name: Eagle Wireless Supply
  • Brand: Chakophone

• Number of Tubes
• 1

• Valves / Tubes

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org

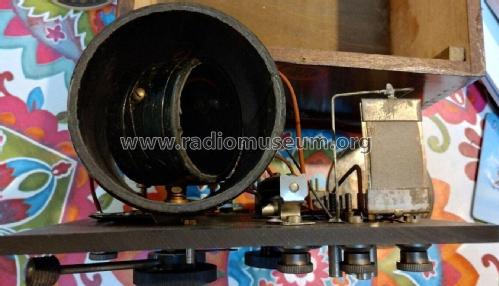

• Model: Chakophone 1A - Chakophone Brand Eagle

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 10 x 8 x 6 inch / 254 x 203 x 152 mm

• Notes
• Receiver only. Grid-leak detector. Wave range 250-2000 metres. Oak cabinet, open type.

• Price in first year of sale
• 3.00 GBP

• Source of data
• Wireless World (The), London (WW, 79)

• Author
• Model page created by John Koster. See "Data change" for further contributors.

• Other Models

• Here you find 24 models, 12 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
