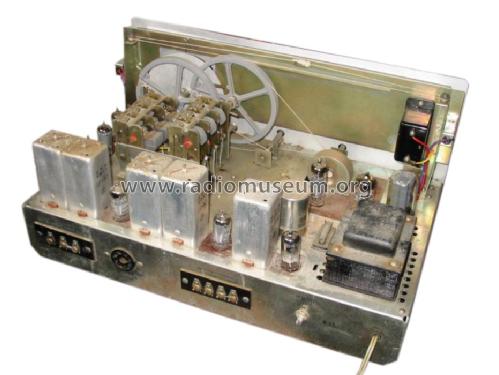

Communication Receiver RX-80
Eagle Products, Eagle International; London, Wembley
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Eagle Products, Eagle International; London, Wembley
- Year
- 1956 ??
- Category
- Commercial Receiver (may include amateur bands)
- Radiomuseum.org ID
- 200361
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Communication Receiver RX-80 - Eagle Products, Eagle
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 420 x 200 x 260 mm / 16.5 x 7.9 x 10.2 inch
- Notes
-
Communication Receiver model RX-80 has 6 Short Wave bands in the 10, 15, 40 and 80 meter ranges.
This model is only labeled "Eagle" and "Tokyo Japan".
See also the similar Eagle Products RX-60N.
- Author
- Model page created by Graham GUY. See "Data change" for further contributors.
