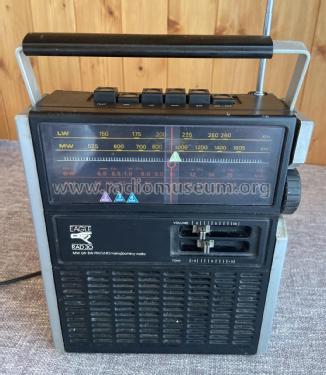

Transistor Radio RAD30

Eagle Products, Eagle International; London, Wembley

Data
Forum
Pictures
Collections

  • Year
  • 1978 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 342269

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 240 / 5x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Transistor Radio RAD30 - Eagle Products, Eagle
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 200 x 240 x 70 mm / 7.9 x 9.4 x 2.8 inch
  • Notes

  • Portable MW/LW/SW/FM (VHF) mains/battery Radio Model Eagle RAD30

    • FM 88 - 108 MHz
    • MW 525 - 1605 kHz
    • LW 150 - 250 kHz
    • SW 6 - 18 MHz
    • Tape In (DIN)
    • Telescopic antenna
    • Carry Handle

    Power Consumption 50Hz 240V AC 4 Watts



  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
