Viking 55-148
Eaton Co. Ltd., The T. (Viking); Toronto
- Country
- Canada
- Manufacturer / Brand
- Eaton Co. Ltd., The T. (Viking); Toronto
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 293182
From RCC Supplement 33

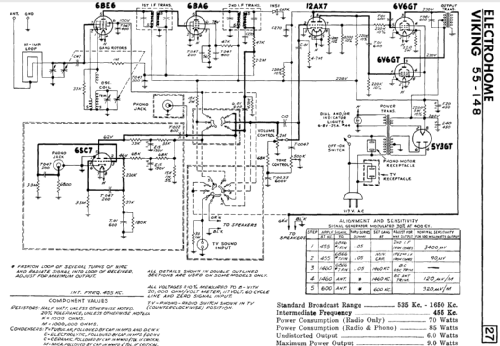

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 6 W (9 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Viking 55-148 - Eaton Co. Ltd., The T. Viking;
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
The Canadian Viking model 55-148 is a 7 tube radio phonograph combination console sold by T. Eaton but manufactured by Dominion Electrohome. It has an internal loop antenna and connection for television sound.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (Suppliment 33 page 27)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
