Viking RC-234
Eaton Co. Ltd., The T. (Viking); Toronto
- Country
- Canada
- Manufacturer / Brand
- Eaton Co. Ltd., The T. (Viking); Toronto
- Year
- 1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 301450

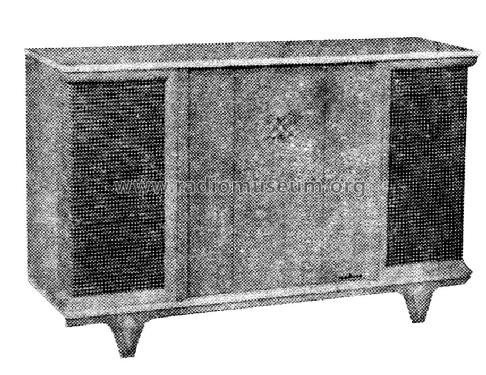

From RCC manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- 6 Loudspeakers
- Power out
- 10 W (14 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Viking RC-234 - Eaton Co. Ltd., The T. Viking;
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
The Viking model RC-234 is an 8-tube console radio with built in record changer. Has two 12 inch woofers and 4 tweeters. Made by Dominion Electrohome Industries for the Eatons department stores. For 25 or 60 Hz depending on nameplate rating.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1956/57 Supplement 39)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
