Viking RC-304
Eaton Co. Ltd., The T. (Viking); Toronto
- Country
- Canada
- Manufacturer / Brand
- Eaton Co. Ltd., The T. (Viking); Toronto
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 337826

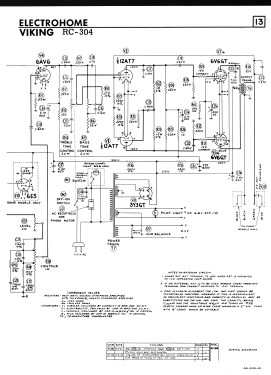

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 10 W (15 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Viking RC-304 - Eaton Co. Ltd., The T. Viking;
- Shape
- Console with any shape - in general
- Notes
-
The Viking model RC-304 is an 8-tube console radio with built-in record player. Made by Electrohome for Eaton Co.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1957-1958 Supplement 42)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
