Viking 53-129
Eaton Co. Ltd., The T. (Viking); Toronto
- Country
- Canada
- Manufacturer / Brand
- Eaton Co. Ltd., The T. (Viking); Toronto
- Year
- 1952 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 174081
- - Manufacturers Literature
- - Manufacturers Literature
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Power out
- 6 W (9 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Viking 53-129 - Eaton Co. Ltd., The T. Viking;
- Shape
- Console with any shape - in general
- Notes
-

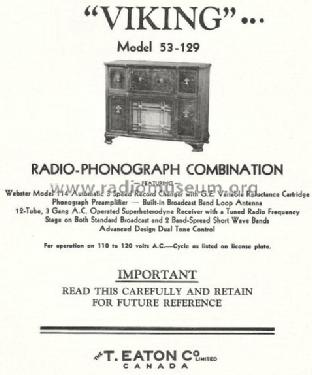

Viking 53-129, Radio-Phonograph Combination;
Webster 114, 3-speed automatic record changer with GE variable reluctance cartridge phonograph preamplifier , AM loop antenna, two AM bands & two SW bands, two tone controls.
BC: 540 to 1640 kHz
SW1: 5.7 to 11 MHz
SW2: 10 to 18 MHz
- Source of data
- - - Manufacturers Literature
- Literature/Schematics (1)
- Radio College of Canada (RCC) (Supplement 30 pages 20 and 21)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
