• Country
• Germany

• Manufacturer / Brand
• EAW, Elektro-Apparate-Werke, VEB, (ex AEG Treptow); Berlin-Treptow (Ostd.)

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 191583

• • alternative name: AEG Treptow (AT, EAT); Berlin || EAT (El.-App. Treptow)
  • Brand: AT Apparatewerk Treptow

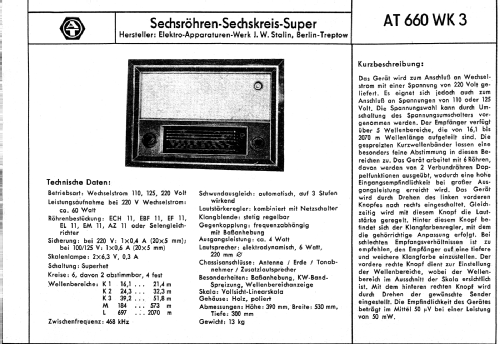

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH11 EBF11 EF11 EL11 EM11 AZ11

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org

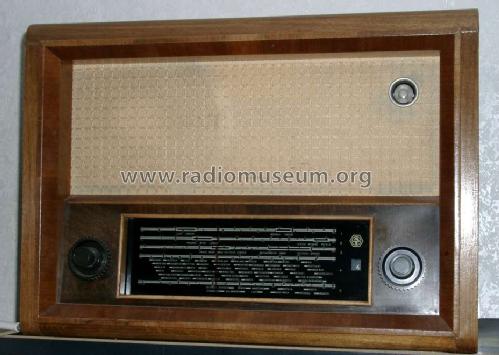

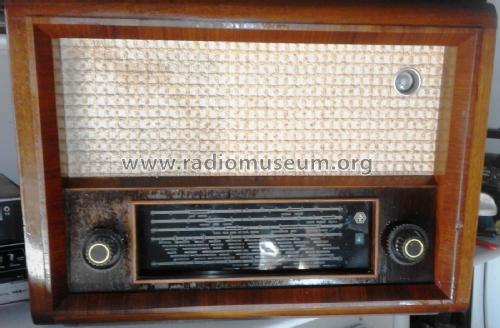

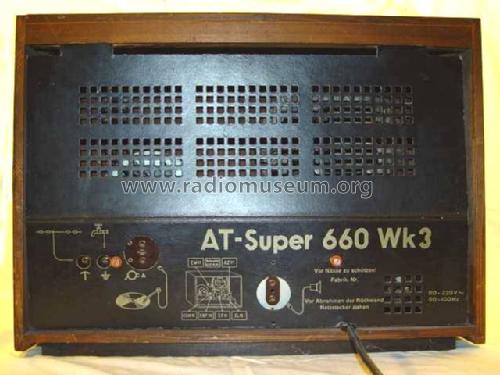

• Model: AT-Super 660Wk3 [mit ECH11, Skala mit Rahmen] - EAW, Elektro-Apparate-Werke,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 530 x 390 x 300 mm / 20.9 x 15.4 x 11.8 inch

• Notes

• KW-Bandspreizung, KW-Bereiche:

  • K1 16,1 ... 21,4 m
  • K2 24,3 ... 32,3 m
  • K3 39,2 ... 51,8 m

• Net weight (2.2 lb = 1 kg)
• 13.9 kg / 30 lb 9.9 oz (30.617 lb)

• Mentioned in
• Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967

• Literature/Schematics (1)
• Service-DVD Funkverlag B. Hein

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
