Leistungsmesskoffer
EAW, Elektro-Apparate-Werke, VEB, (ex AEG Treptow); Berlin-Treptow (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- EAW, Elektro-Apparate-Werke, VEB, (ex AEG Treptow); Berlin-Treptow (Ostd.)
- Year
- 1955 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 308382
-
- alternative name: AEG Treptow (AT, EAT); Berlin || EAT (El.-App. Treptow)
- Brand: AT Apparatewerk Treptow
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Leistungsmesskoffer - EAW, Elektro-Apparate-Werke,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 490 x 440 x 110 mm / 19.3 x 17.3 x 4.3 inch
- Notes
-
Leistungsmesskoffer für Laborbetrieb.
Koffer aus Holz mit Kunstlederbezug. Messgeräte und Vorwiderstände mit Bakelitgehäuse.
Stromwandler aus Metall und Bakelit.Inhalt des Messkoffers:

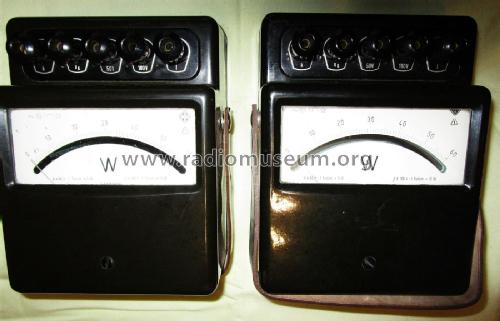

- 2 Stück Wattmeter 300 / 600 W (6 A, 50 / 100 V)

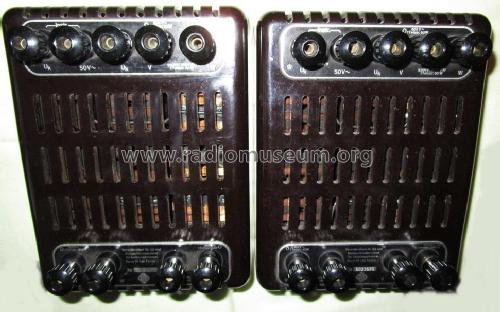

- 2 Stück Vorwiderstände für höhere Spannung
- 2 Stück Stromwandler 15-800 / 5 A
- 9 Stück Messleitungen
- Net weight (2.2 lb = 1 kg)
- 8.5 kg / 18 lb 11.6 oz (18.722 lb)
- Author
- Model page created by Lutz Weißig. See "Data change" for further contributors.
