- Country
- Germany
- Manufacturer / Brand
- EAW, Elektro-Apparate-Werke, VEB, (ex AEG Treptow); Berlin-Treptow (Ostd.)
- Year
- 1982 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 120765
-
- alternative name: AEG Treptow (AT, EAT); Berlin || EAT (El.-App. Treptow)
- Brand: AT Apparatewerk Treptow
- Number of Transistors
- 9
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 5 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 220/ 6x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 3.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

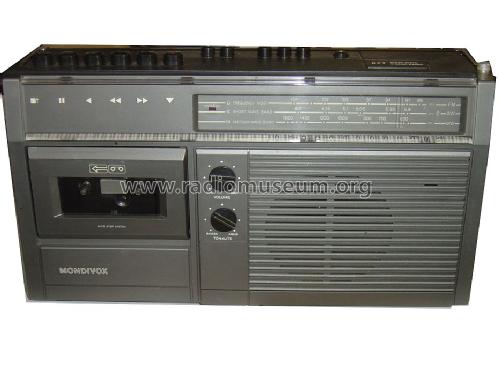

- Model: Mondivox - EAW, Elektro-Apparate-Werke,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 370 x 194 x 83 mm / 14.6 x 7.6 x 3.3 inch
- Notes
- Exportausführung des KR660 nach Frankreich mit 4 IC : A281D, 2 x A202D, A210K, Bandzählwerk, Pausentaste, eingebautes Mikro, Anschlüsse für Zweitlautsprecher, Plattenspieler und Außenantenne.
- Net weight (2.2 lb = 1 kg)
- 3.6 kg / 7 lb 14.9 oz (7.93 lb)
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Wolfgang Lill. See "Data change" for further contributors.
