• Country
• Germany

• Manufacturer / Brand
• EAW, Elektro-Apparate-Werke, VEB, (ex AEG Treptow); Berlin-Treptow (Ostd.)

• Year
• 1983/1984

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 275574

• • alternative name: AEG Treptow (AT, EAT); Berlin || EAT (El.-App. Treptow)
  • Brand: AT Apparatewerk Treptow

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• SF235 SF235 SF225 SC239 SC236 SC236 A210K A281D

• Main principle
• Superheterodyne (common); ZF/IF ? / 10700 kHz; 455 AF stage(s); Export model

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 240; 6 x 1,5 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (2.5 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

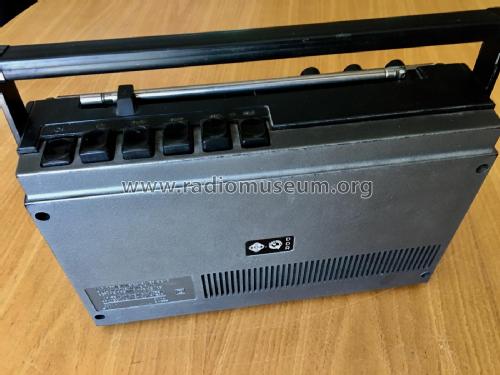

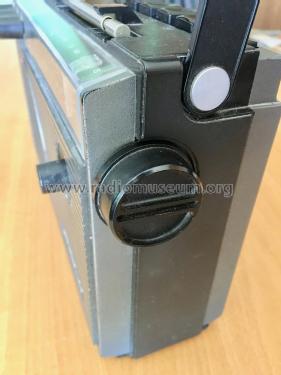

• Model: SOUND solo RM1 [Tropenband] - EAW, Elektro-Apparate-Werke,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 265 x 165 x 80 mm / 10.4 x 6.5 x 3.1 inch

• Notes

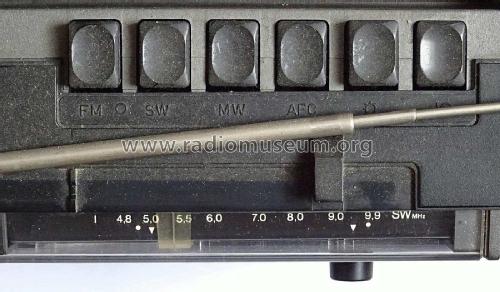

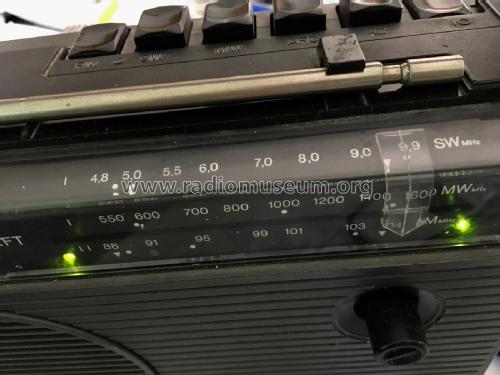

• Exportgerät (z. B. nach Uganda) mit FM, MW und  KW 4,75 ... 9,9 MHz (60-m-Tropenband bis 31-m-Band), KW-Lupe, LED-Abstimmanzeige, AFC abschaltbar, getrennte Höhen- und Tiefenregelung.
  Eingebautes Netzteil für 240 V~, Anschlüsse für TA/TB, Zusatzlautsprecher und Außenantenne. Erhöhte Ausgangsleistung (2,5 W) bei Netzbetrieb.



• Net weight (2.2 lb = 1 kg)
• 1.9 kg / 4 lb 3 oz (4.185 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by a member from SK. See "Data change" for further contributors.
