Universalmesser II (2)
EAW, Elektro-Apparate-Werke, VEB, (ex AEG Treptow); Berlin-Treptow (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- EAW, Elektro-Apparate-Werke, VEB, (ex AEG Treptow); Berlin-Treptow (Ostd.)
- Year
- 1959 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 77843
-
- alternative name: AEG Treptow (AT, EAT); Berlin || EAT (El.-App. Treptow)
- Brand: AT Apparatewerk Treptow

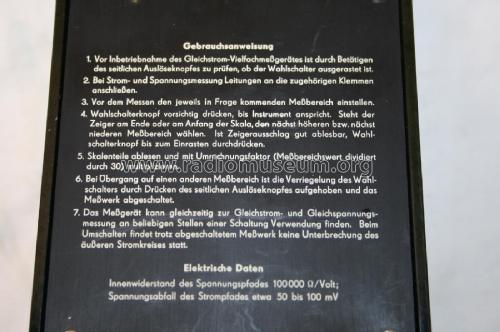

Bodenplatte mit Bedienungsanweisung.
eigenes Bild, eigenes Gerät
eigenes Bild, eigenes Gerät
eigenes Bild, eigenes Gerät
eigenes Bild, eigenes Gerät
eigenes Bild, eigenes Gerät
eigenes Bild, eigenes Gerät
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- from Radiomuseum.org
- Model: Universalmesser II - EAW, Elektro-Apparate-Werke,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 106 x 78 x 198 mm / 4.2 x 3.1 x 7.8 inch
- Notes
- Strom- und Spannungsmesser für Gleichstrom mit 24 Messbereichen, 30 mV-600 V und 15 µA-6 A; 100 kOhm/V, 1,5 %. Kernmagnet-Drehspulmesswerk mit Spannband.
- Net weight (2.2 lb = 1 kg)
- 1 kg / 2 lb 3.2 oz (2.203 lb)
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
