- Country
- Hungary
- Manufacturer / Brand
- Echo, Vörös Rezső okl. gépészmérnök Rádiólaboratóriuma; Budapest
- Year
- 1939–1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 124003

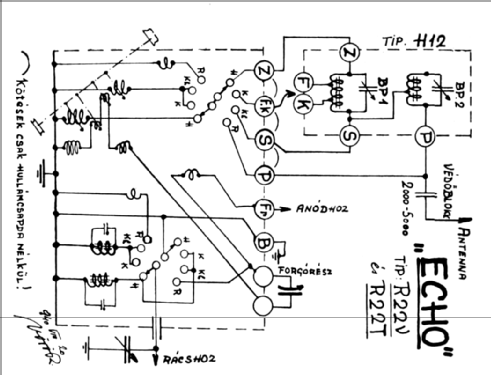

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF with regeneration
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 150; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20.25 cm = 8 inch
- Power out
- 5 W (unknown quality)
- from Radiomuseum.org
- Model: 241V - Echo, Vörös Rezső okl. gépészm
- Notes
-
Speaker: Orion 9650
- Mentioned in
- Rádió Compass 1940-41.
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
