• Country
• Germany

• Manufacturer / Brand
• Echolette (Marke / brand); München

• Year
• 1974

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 222728

• • Brand: Klemt-Echolette

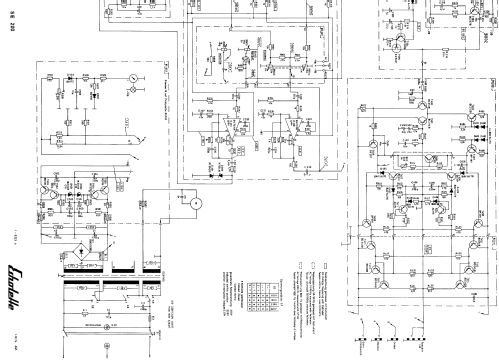

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 50

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220, 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 80 W (120 W max.)

• Material
• Various materials

• from Radiomuseum.org
• Model: Kompaktverstärker SE200 - Echolette Marke / brand;

• Shape
• Tablemodel, slant panel.

• Dimensions (WHD)
• 430 x 215 x 460 mm / 16.9 x 8.5 x 18.1 inch

• Notes
• 6-Kanal Power-Mixer mit Bandecho. 4 Tonköpfe, Endlosbandschleife. Aussteuerungsanzeige üder Analog Zeiger-Instrument.

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Author
• Model page created by Norbert Haselbach. See "Data change" for further contributors.
