Echophone Radio, Inc. - see also (The) Radio Shop or Hallicrafters Inc.

Data
Forum
Pictures
Collections

  • Year
  • 1931/1932
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 37955
    • Brand: Ufonic

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 175 kHz
  • Tuned circuits
  • 8 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 115; ? Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

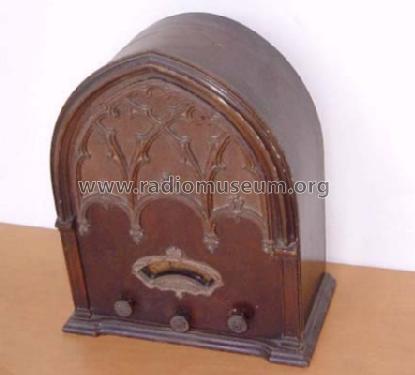

  • Model: 80 - Echophone Radio, Inc. - see
  • Shape
  • Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
  • Dimensions (WHD)
  • 370 x 430 x 200 mm / 14.6 x 16.9 x 7.9 inch
  • Notes
  • Push-pull AF output stage. Reference for the date: "Los Angeles Radio Manufacturing" by Floyd A. Paul. (1988), page 13: shows that in Autumn 1930, Echophone moved at least the production from Hollywood to Waukegan, Illinois. In September 1931, "Radio Retailing" shows pictures of three cathedral models, 40 Echoette, 60 and 80 plus a console 90.
  • Net weight (2.2 lb = 1 kg)
  • 9 kg / 19 lb 13.2 oz (19.824 lb)
  • Price in first year of sale
  • 69.00 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
