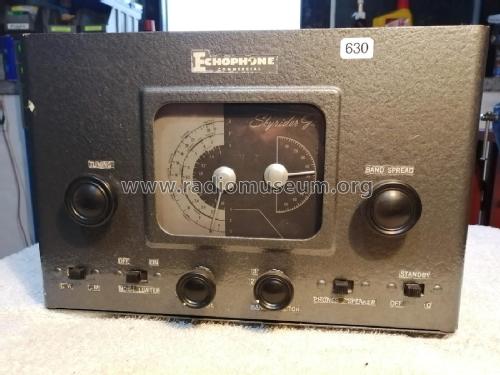

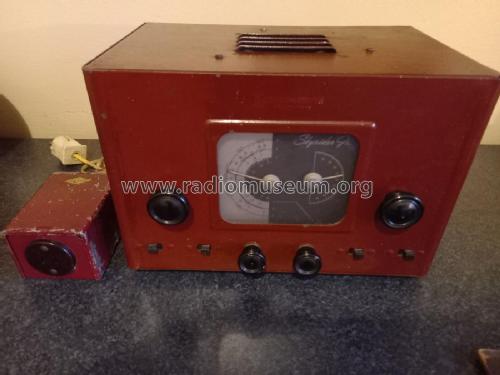

EC-1

• Country
• Switzerland

• Manufacturer / Brand
• Echophone, Marke (ab 1937) von Apco AG; Zürich

• Year
• 1945/1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 11998

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

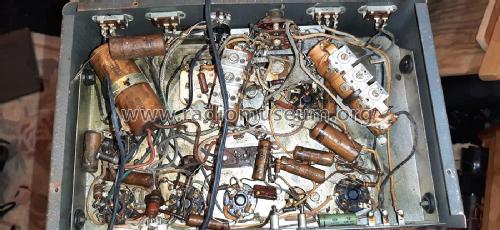

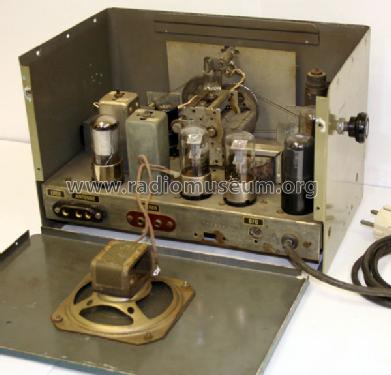

• Number of Tubes
• 6

• Valves / Tubes
• 12K8 12SK7 12SQ7 35L6GT 12J5GT 35Z5GT

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

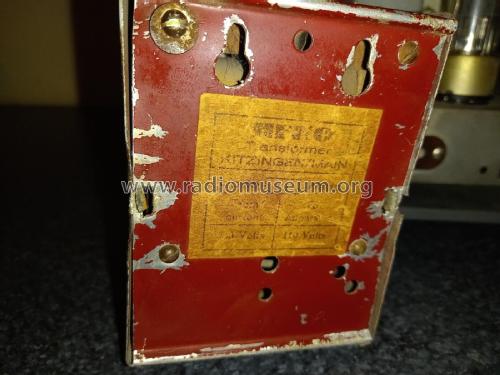

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

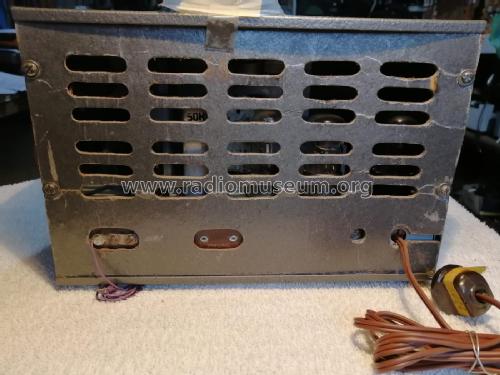

• Material
• Metal case

• from Radiomuseum.org
• Model: EC-1 - Echophone, Marke ab 1937 von

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 295 x 192 x 192 mm / 11.6 x 7.6 x 7.6 inch

• Notes

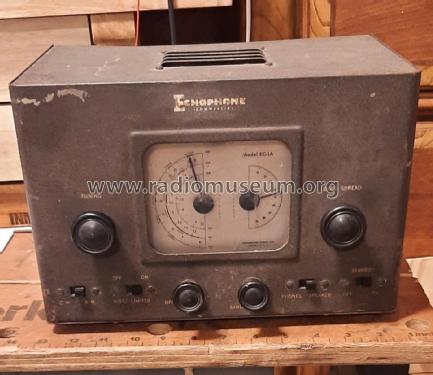

• Set imported by Apco AG, Zurich, identical to EC-1 made by Echophone USA, a brand of Hallicrafters. See also similar models under Paramount label: EC-1A and EC-1B.

  Three bands covering 550 kHz to 30 MHz. Bandspread; BFO. See also the assembly from APCO, Switzerland, as Echophone EC-1 A/B Skyrider Jr. It is to compare with the Hallicrafters Skyrider Jr. S-41G. The real story between these models has probably still to be detected and told. Maybe we should split this into two models - if some other sets will be found of the same kind.

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.
