• Country
• United States of America (USA)

• Manufacturer / Brand
• Echophone Radio, Inc. - see also (The) Radio Shop or Hallicrafters Inc.

• Year
• 1946–1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 37960

• • Brand: Ufonic

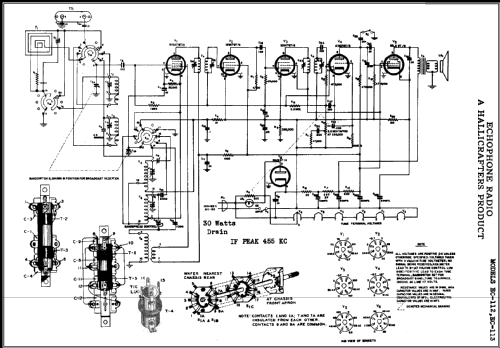

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SA7 12SK7 12SK7 12SQ7 35L6 35Z5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: EC-112 - Echophone Radio, Inc. - see

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 356 x 210 x 160 mm / 14 x 8.3 x 6.3 inch

• Notes

• EC-112, EC-113 and EC-114 are technically identical, differences are the design and material of the case, this model has an ivory painted bakelite case.





• Net weight (2.2 lb = 1 kg)
• 7 lb 0 oz (7 lb) / 3.178 kg

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• Radios by hallicrafters

• Literature/Schematics (1)
• Collector's Guide to Antique Radios (7th Edition)
