Karadio "The Airport" 80-B
Eckstein Radio and Television, Karadio, L'Tatro; Minneapolis
- Country
- United States of America (USA)
- Manufacturer / Brand
- Eckstein Radio and Television, Karadio, L'Tatro; Minneapolis
- Year
- 1949 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 37984
-
- alternative name: LTatro

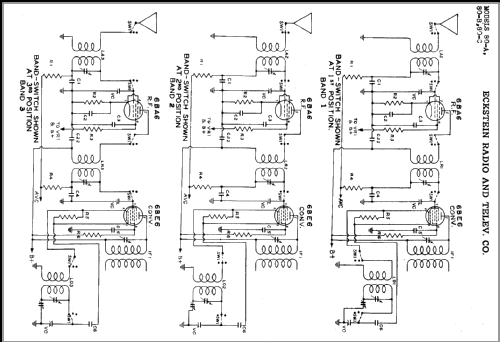

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 5.0 - 7.3 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Power out
- 2 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Karadio "The Airport" 80-B - Eckstein Radio and Television,
- Shape
- Tablemodel, with any shape - general.
- Notes
- Model 80-B (Airport):
Band 1 ... 190 - 420 kc
Band 2 ... 540 - 1650 kc
Band 3 ... 5,8 - 17,5 mc
Vibrator for +B.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 17 = 1948 and before
