Peter Pan BJP

Eclipse Radio Pty. Ltd.; Melbourne

Data
Forum
Pictures
Collections

  • Year
  • 1950–1952
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 191061
    • alternative name: Electronic Industries Ltd

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 200-220; 220-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Peter Pan BJP - Eclipse Radio Pty. Ltd.;
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

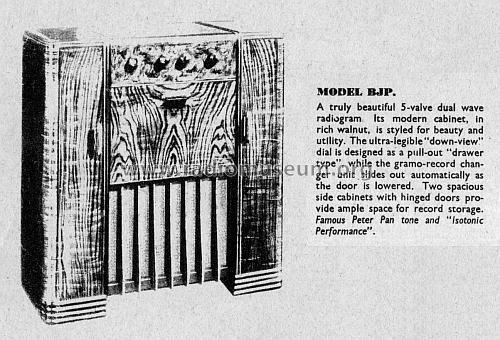

  • Dual-wave radiogram with 78RPM record changer.

    See also Monarch BJP & Astor version Model JP

  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. IX
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Eclipse Radio Technical Bulletin, BJP-1, 8/8/1950.)
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
