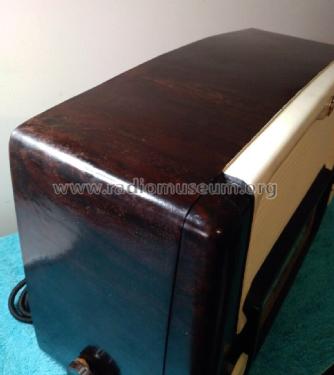

Peter Pan GKJ with 6AN7 converter.

Eclipse Radio Pty. Ltd.; Melbourne

Data
Forum
Pictures
Collections

  • Year
  • 1952
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 192610
    • alternative name: Electronic Industries Ltd

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 200-220; 221-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • from Radiomuseum.org
  • Model: Peter Pan GKJ [with 6AN7 converter.] - Eclipse Radio Pty. Ltd.;
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • This model has three band spread short wave ranges, covering the 19, 25 and 31 metre bands.
  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. XI
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model Peter Pan is part of the collections of the following members.

 Forum

Forum contributions about this model: Eclipse Radio Pty.: Peter Pan GKJ

Threads: 1 | Posts: 2

I seek a schematic for a peter pan GKJ with an 6AN7 converter. I have read that this is available in volume 11 AORSM, a copy of which I cannot find,thanks, Geoff Hope
