100-Watt C.W. and Telephony Transmitter
Eddystone (Brand), Stratton and Co., Ltd., Eddystone Radio Ltd.; Birmingham
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Eddystone (Brand), Stratton and Co., Ltd., Eddystone Radio Ltd.; Birmingham
- Year
- 1935
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 355309
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Transmitter
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: 100-Watt C.W. and Telephony Transmitter - Eddystone Brand, Stratton and
- Shape
- Chassis only or for «building in»
- Notes
-
Technical Description of 1935, 100-Watt C.W. and Telephony Transmitter
General Description:
This 1935 transmitter offers crystal-controlled operation for both telephony (voice) and continuous wave (C.W.) transmission. It operates directly from AC mains power and delivers a full 100 watts of RF power output.Frequency Selection and Band Switching:
- Two crystal oscillators are provided, selectable by a switch.
- Crystal 1: Provides a master frequency in the 3.5 MHz band (80 metres)
- Crystal 2: Provides a master frequency in the 7 MHz band (40 metres)
- Interchangeable coils (L3, L5, L9) are used for each band and stage.
- 80 metres: Crystals 1 & 2 offer dedicated coils for oscillator, buffer, and final amplifier stages.
- 40 metres: Crystals 1 & 2 require coil changes for all stages.
- 20 metres:
- C.W. operation achieved by changing only L3 and L5 (using Crystal 2), resulting in 40, 20, and 20 metre operation respectively (buffer stage doubles frequency).
- Telephony operation requires an additional 14 MHz crystal (not commonly used).
Circuit Stages:

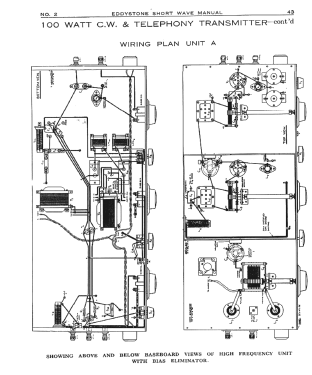

The transmitter is housed in three separate units:Unit A - Crystal Oscillator & Buffer Amplifier
- Master oscillator valve: Osram PT4 pentode (V5) - high output for low HT voltage.
- Crystal oscillator utilizes a 6-pin interchangeable coil for frequency selection.
- Buffer amplifier: Mullard T25D valve (V4) - metallised, class C operation for full telephony modulation.
- Both stages receive HT power (500 volts) from the subsidiary power supply in Unit C.
- Grid bias for both buffer and output stages sourced from a dedicated 250-volt power supply mounted under Unit A's baseboard (diagram 3).
- Mullard DW2 rectifier valve (V6) provides bias voltage.
- CW operation key jack for grid blocking.
- Provision for a coupling coil for Zepp-fed Hertz antenna.

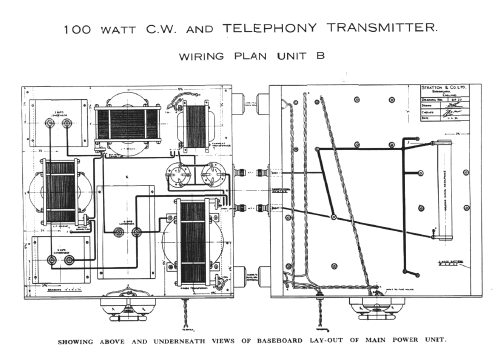

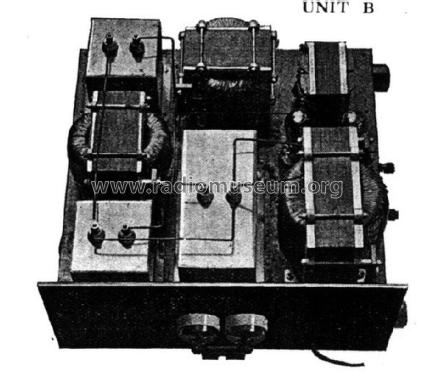

Unit B - Main Power Supply
- High voltage rectification: Two Osram GUI (V1 & V2) mercury-vapor rectifier valves for full wave rectification.
- High high-voltage transformer located on the right side.
- Smoothing circuit employs two heavy chokes in series with three reservoir capacitors.
- Separate transformer for heating the GUI rectifiers (primary and secondary windings require high insulation).
- Load resistor (R16) across HT output for peak voltage reduction and improved regulation.
- Main power switch controls all three units.
- Dedicated control switch for Unit B allows independent power control for the remaining transmitter sections.
Unit C - Subsidiary Power Supply (not explicitly detailed)
- Provides 500-volt HT power for Unit A stages.
Additional Notes:
- Worldwide range achievable (limited by atmospheric conditions).
- 80 metres preferred for local communication due to skip distance of 40 metres (varies seasonally).
- Milliammeters monitor current in each stage for simplified tuning.
Overall, this 1935 transmitter offered a versatile and powerful solution for both voice and CW communication at the time.
- Two crystal oscillators are provided, selectable by a switch.
- Mentioned in
- - - Manufacturers Literature (Eddystone Shortwave Manual No. 2 1935, Pages 42 - 48)
