6-pin Coil Base 964

Eddystone (Brand), Stratton and Co., Ltd., Eddystone Radio Ltd.; Birmingham

Data
Forum
Pictures
Collections

  • Year
  • 1935
  • Category
  • Radio part (not a module)
  • Radiomuseum.org ID
  • 356121

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: 6-pin Coil Base 964 - Eddystone Brand, Stratton and
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 1.75 x 1 x 1.75 inch / 44 x 25 x 44 mm
  • Notes

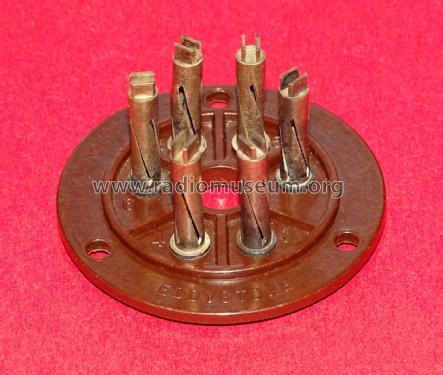

  • 6-pin chassis-mounting coil base for Eddystone Cat. Nos. 537/538 coil formers. Moulded in DL9 bakelite. Silver plated one-piece sockets separated by ribbing in the moulding to increase the leakage path and add additional mechanical strength. Non-sequential numbering. Required hole in chassis 1.25" diameter. Three 0.125" diameter fixing holes for 6BA screws.

  • Net weight (2.2 lb = 1 kg)
  • 0 lb 0.3 oz (0.021 lb) / 0.010 kg
  • Mentioned in
  • - - Manufacturers Literature (1935 Eddystone Short Wave Components Catalogue)
  • Author
  • Model page created by Bruce Taylor. See "Data change" for further contributors.
