- Country
- Australia
- Manufacturer / Brand
- AEI Ekco, Ediswan-Ekco (Aust.) Pty. Ltd.; Sydney, NSW
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 235686
-
- Brand: Ekco Australia
- Number of Tubes
- 20
- Valves / Tubes
- PCC84 PCF80 EF80 EF80 EF80 PL83 EF80 EF80 PABC80 PL82 EF80 ECC82 PL82 EF80 EB91 ECC82 PL81 PY81 EY86 CRM171 or CRM172
- Number of Transistors
- Semiconductors
- Selenium-Rectifier
- Main principle
- Superhet with RF-stage; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- AC/DC-set / 220; 230; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

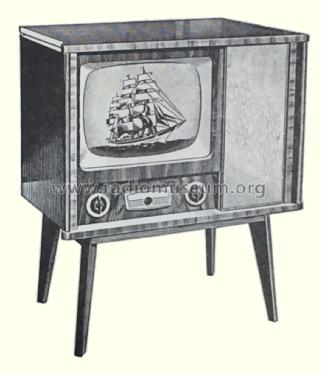

- Model: TCX297 - AEI Ekco, Ediswan-Ekco Aust.
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
This is a 17 inch B&W television that tunes the 10 Australian VHF channels standard at the time.
- Literature/Schematics (1)
- J. R. Publications "Television Service Handbook" Page E1.
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
