• Country
• Italy

• Manufacturer / Brand
• Effedibi Radio, FDB Radio TV, de Benardi, SARE (S.A.R.E.); Torino, Milano

• Year
• 1949 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 88773

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH4 EF9 EBC3 EL3 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

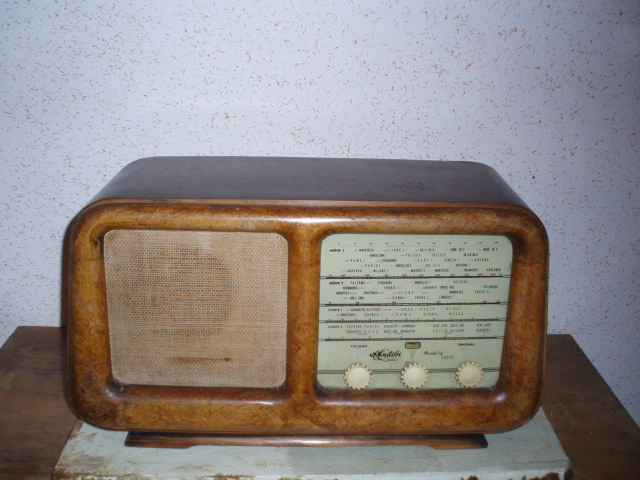

• Model: Soave - Effedibi Radio, FDB Radio TV,

• Shape
• Tablemodel, low profile (big size).

• Notes
• Gamme d'onda: 2 OM, 2 OC.
  Wave bands: 2 BC, 2 SW.

• Mentioned in
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 63)

• Literature/Schematics (1)
• Riparazioni - Scuola Radio Elettra (pag. E4)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
