• Country
• Germany

• Manufacturer / Brand
• Egger-Bahn GmbH & Co KG (Lectron); München

• Year
• 1967/1967

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 195030

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• AC151 AC151

• Main principle
• Audio-Amplification; 2 AF stage(s)

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 9 Volt

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

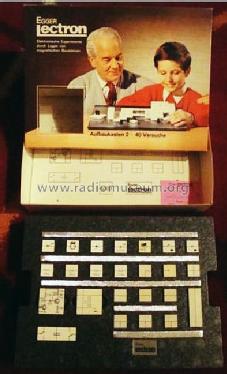

• Model: Lectron Aufbaukasten 2 8200 - Egger-Bahn GmbH & Co KG

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 455 x 70 x 340 mm / 17.9 x 2.8 x 13.4 inch

• Notes
• Elektronische Experimente mit magnetischen Bausteinen;
  Inhalt: 24 Bausteine, darunter ein kompletter 2-stufiger NF-Verstärker;
  Voraussetzungen: Lectron Grundkasten (8000) und Lectron Aufbaukasten 1 (8100)
  oder Super Lectron A 8300 (entspricht Grundkasten - 8000 plus Aufbaukasten 1 - 8100).

• Price in first year of sale
• 96.00 DM

• Author
• Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.
